DIY-Rycote lyre shock mount w/ rapid release
« on: January 24, 2017, 12:34:51 PM »
This is more of a parts assembly project then really making something.
I wanted Rycote lyres but did not want the mounts they have or want to pay the prices... I may have not saved much $ , but got what worked well for me and suited my needs.
It's small and compact and works great!

I purchased these:

Impact Rapid Baby to 1/4"-20 Male Threaded Adapter   = $11.68
https://www.amazon.com/gp/product/B00AE1MNFA/ref=oh_aui_detailpage_o02_s01?ie=UTF8&psc=1


Smallrig® Cold Shoe with 1/4" Screw Slot - 1499   =   $7.90
https://www.amazon.com/gp/product/B00O9I0RTS/ref=oh_aui_detailpage_o02_s00?ie=UTF8&psc=1

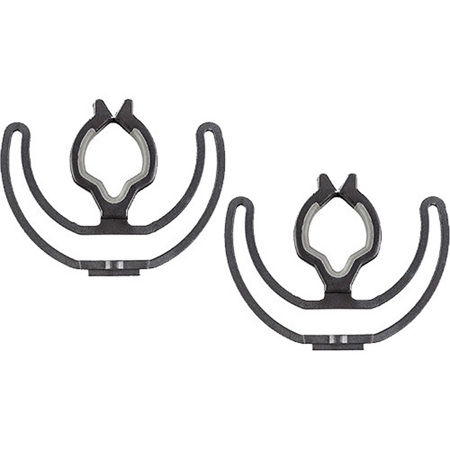

 Rycote Cyclone Universal Lyre, 72 Shore, Pair   = $29.00
Photo shows it comes with screws , however the pair did not.
https://www.adorama.com/ry042271.html

I also purchased a package of #4-40 x 1/2 in  Flat Phillips machine screws with nuts - pkg or 14 pairs , only needed 2.   I think it was $1.49
also purchased a pkg of white nylon flat washers  #8 for  about 59¢

A total of about $50  not much of a savings but its what I want a rapid adapter mount and Rycote llyres. I've only used it  once so far but it's perfect for me!

Used a Sharpie to black out white and zinc and made this, for my SRS shapeways NOS an d DIN bars for my Milab VM44 links:














« Last Edit: January 26, 2017, 12:07:07 PM by ArchivalAudio »
~ Archival Audio ~
Archiving Worthy Music
since 1986 & digitally since 1995

https://www.facebook.com/ArchivalAudio/

Main Mics: Milab VM-44 Links • Milab DC-196's (Matched  Pair)  •  Busman BSC2 BusBox (K21-O, K41-SC, K11-C)  • Line Audio CM3's
PreAmps:  SD USB-Pre2  • Naiant LittleBox • Naiant [Milab VM44] TinyBox (no bodies) • Naiant PIPsqueak
Recorders: Zoom F8 • Tascam DR-680 • Tascam DR-60D • Marantz PMD 661 • Sony M-10

macMini 3Ghz i7 16GB Ram 500GB SSD • MOTU UltraLite
RODE  NT5's • Naiant MSH-2's •   TOA K1's • Beyer TG 153c's •  AT 853 (4.7kmod darktrain) • Countryman B3's (1 k mod)  + other assorted mics
==============================
Extra:  Denecke AD-20   |    Presonus FireB

Offline kingdong

  • Trade Count: (17)
  • Taperssection Regular
  • **
  • Posts: 64
Re: DIY-Rycote w/ rapid release
« Reply #1 on: January 24, 2017, 01:09:06 PM »
How tight was the fit of the little rectangular "keys" of the lyres into the slots on the cold shoe?
It looks like it went together well and is a slick little mount.

Offline ArchivalAudio

  • Trade Count: (15)
  • Needs to get out more...
  • *****
  • Posts: 2720
  • Gender: Male
  • Team Milab | TeamVW:2004 TDI Beetle -Malone1.5
Re: DIY-Rycote w/ rapid release
« Reply #2 on: January 24, 2017, 01:39:54 PM »
How tight was the fit of the little rectangular "keys" of the lyres into the slots on the cold shoe?
It looks like it went together well and is a slick little mount.
They fit rather well, I did need to round corner by filing the lyres tabs (or keys) as they were rectangular square corners and the slots are round cornered.
While it took a little work it wasn't difficult or time consuming. It's totally solid
~ Archival Audio ~
Archiving Worthy Music
since 1986 & digitally since 1995

https://www.facebook.com/ArchivalAudio/

Main Mics: Milab VM-44 Links • Milab DC-196's (Matched  Pair)  •  Busman BSC2 BusBox (K21-O, K41-SC, K11-C)  • Line Audio CM3's
PreAmps:  SD USB-Pre2  • Naiant LittleBox • Naiant [Milab VM44] TinyBox (no bodies) • Naiant PIPsqueak
Recorders: Zoom F8 • Tascam DR-680 • Tascam DR-60D • Marantz PMD 661 • Sony M-10

macMini 3Ghz i7 16GB Ram 500GB SSD • MOTU UltraLite
RODE  NT5's • Naiant MSH-2's •   TOA K1's • Beyer TG 153c's •  AT 853 (4.7kmod darktrain) • Countryman B3's (1 k mod)  + other assorted mics
==============================
Extra:  Denecke AD-20   |    Presonus FireB

Offline darby

  • Trade Count: (60)
  • Taperssection All-Star
  • ****
  • Posts: 1224
  • Support artists and venues that allow recording
Re: DIY-Rycote w/ rapid release
« Reply #3 on: January 24, 2017, 04:39:41 PM »
have you used that with an ORTF bar?
I think it may be too wide

Offline ArchivalAudio

  • Trade Count: (15)
  • Needs to get out more...
  • *****
  • Posts: 2720
  • Gender: Male
  • Team Milab | TeamVW:2004 TDI Beetle -Malone1.5
Re: DIY-Rycote w/ rapid release
« Reply #4 on: January 24, 2017, 05:35:13 PM »
have you used that with an ORTF bar?
I think it may be too wide

Well the  NOS bar as I understand is specifically designed for the Rycotes... I will be getting my DIN bar soon, and it should be the  same mount size as an ORTF bar.
I can check but the Lyre's are flexible and can be set at a narrower spacing, or even slightly wider then they are. The cold shoe mount is only 46mm wide or 4.6 cm not wide at all...That equals 1.75 inches.
« Last Edit: January 25, 2017, 01:14:48 AM by ArchivalAudio »
~ Archival Audio ~
Archiving Worthy Music
since 1986 & digitally since 1995

https://www.facebook.com/ArchivalAudio/

Main Mics: Milab VM-44 Links • Milab DC-196's (Matched  Pair)  •  Busman BSC2 BusBox (K21-O, K41-SC, K11-C)  • Line Audio CM3's
PreAmps:  SD USB-Pre2  • Naiant LittleBox • Naiant [Milab VM44] TinyBox (no bodies) • Naiant PIPsqueak
Recorders: Zoom F8 • Tascam DR-680 • Tascam DR-60D • Marantz PMD 661 • Sony M-10

macMini 3Ghz i7 16GB Ram 500GB SSD • MOTU UltraLite
RODE  NT5's • Naiant MSH-2's •   TOA K1's • Beyer TG 153c's •  AT 853 (4.7kmod darktrain) • Countryman B3's (1 k mod)  + other assorted mics
==============================
Extra:  Denecke AD-20   |    Presonus FireB

Offline F.O.Bean

  • Is a 4 channel slut and
  • Trade Count: (120)
  • Needs to get out more...
  • *****
  • Posts: 40542
  • Gender: Male
  • Taperus Maximus
Re: DIY-Rycote lyre shock mount w/ rapid release
« Reply #5 on: January 26, 2017, 09:54:02 PM »
Very nice AA :) I really dig the DIY mount! Pretty nice for $50 :)
