Horizontal extender for stand?
« on: August 09, 2019, 09:00:39 PM »
So at one venue I gaffer my 8’ stand to a pole so I can run 12’. Is there some kind of extender out there that can be screwed on a stand to extend out horizontally? it’s a pain in the ass to mount a mic bar because the stand needs to be flush to the pole.

Thanks!
« Last Edit: August 10, 2019, 10:46:45 AM by MakersMarc »
😈 Mk4v/41v>nbob actives>Baby nbox>Oade warm mod Marantz 620.

Open: 4v/41v>nbobs>Nicky mod Naiant PFA>Oade warm mod 661.

Home: the Stereo Hospital budget refurb rig: Lappie>DragonFly Red with Jitterbug>Nikko NR520 amp>B&W V202 speakers. Hi Fi Goodwill style.

Offline Moke

  • Trade Count: (2)
  • Needs to get out more...
  • *****
  • Posts: 4048
  • caught and released 12 of them, ^
Re: Vertical extender for stand?
« Reply #1 on: August 10, 2019, 10:21:04 AM »
Marc,

This is a bit indirect, as it is part of a whole kit of adaptors that I use. I use them as vertical extensions, and horizontal extensions, with manfrotto mini clamp, and larger super clamps; bear with....
I carry a series of all-thread rod sections, derived from 3/8-16 stock.  I carry a selection of extensions between 6" to 3' long (the sizes that are readily available at the hardware store).  I use an thread rod ferrule connector (a 4x long nut), and, wing nuts. The thread rod connector ferrule gives you a deep female thread set, and the wingnut is your jam/lock nut. I cover the all-thread rod in black heat shrink to conceal the threads
It requires that you have a 5/8-27_to_3/8-16 adaptor on your stand (I no longer run the larger thread pitch at all).

I'm looking for some pics; check back.

pics:
This is what I could quickly find; think creatively....
This is a combination of a longer section of thread rod, connected to a kick drum stand, and, on top of it, is a shorter section of thread rod stock to extend the stand for a second set of mics. All of the vertical sections are of this thread rod stock, connector ferrules and wing nuts.

rambling legend of image 6840:
> near the bottom is a red adaptor. that is the 58-27->3/8-16 adaptor.
> 2' thread rod with female ferrule connector and wingnut to attach and secure.
 > At J-Disc has a ferrule connector (silver) and wing nuts, and, a thread set to allow for another extension
> 6" thread rod extension with silver ferrule connector and wing nut, with t-bar at top (xy config)

image2979:
Again with the thread rod. This time, bent at 90º, to achieve perpendicular horizontal angle to the vertical stand.
There is also a silver 5/8->3/8-16 adaptor where the thread rod begins at the top of the "base" stand.
The main thread rod vertical element in this image is a 3' section.
« Last Edit: August 10, 2019, 01:06:27 PM by Moke »
Sent From My Craftsman Garage Door Opener

Offline MakersMarc

  • Trade Count: (15)
  • Needs to get out more...
  • *****
  • Posts: 2941
  • Gender: Male
  • 😈
Re: Horizontal extender for stand?
« Reply #2 on: August 10, 2019, 10:49:00 AM »
Thanks Moke, gives me lots of options!
😈 Mk4v/41v>nbob actives>Baby nbox>Oade warm mod Marantz 620.

Open: 4v/41v>nbobs>Nicky mod Naiant PFA>Oade warm mod 661.

Home: the Stereo Hospital budget refurb rig: Lappie>DragonFly Red with Jitterbug>Nikko NR520 amp>B&W V202 speakers. Hi Fi Goodwill style.

Offline Moke

  • Trade Count: (2)
  • Needs to get out more...
  • *****
  • Posts: 4048
  • caught and released 12 of them, ^
Re: Horizontal extender for stand?
« Reply #3 on: August 10, 2019, 11:21:33 AM »
no prob.
The 3/8 ferrule connector also fits the spigot hole on superclamps, quite well; also the manfrotto miniclamp (my personal favorite).
It doesn't click and lock on the superclamp, like a real spigot. but, it is well held by the clamps locking screw.
It cleanly passes through the thru-hole on the mini-clamp, like it was made for it.

pics
Güde is rigged HRTF stereo, on a Manfrotto Mini, and a 4" thread rod extension in the thru-hole.
The CM3 pair is rigged on a 1' (6"?) thread rod extension, and, on a proper superclamp spigot.
« Last Edit: August 10, 2019, 11:23:27 AM by Moke »
Sent From My Craftsman Garage Door Opener

Offline Moke

  • Trade Count: (2)
  • Needs to get out more...
  • *****
  • Posts: 4048
  • caught and released 12 of them, ^
Re: Horizontal extender for stand?
« Reply #4 on: August 10, 2019, 01:21:53 PM »
realizing that the OP was for a horizontal extension,... I couldn't find good detailed pics of this kit in use. So, I took these pics just now.

7091 is how it goes to horizontal
7092 is the Manfrotto Miniclamp, and some of the extensions (1' or less)
The Miniclamp has a thru-hole thru the thick part of the clamp, that cleanly passes the extensions that do not have any heatshrink on the connecting ferrule threads. The heat shrink is a great fit, if you're not trying to pass it thru the clamp; otherwise you need to leave the h.shrink off of the widest parts..
The Miniclamp has two set screw holes. This makes it convenient to flip the clamp screw, depending on fitting needs and tightness of area.
« Last Edit: August 12, 2019, 08:57:12 AM by Moke »
Sent From My Craftsman Garage Door Opener

Offline voltronic

  • Trade Count: (32)
  • Needs to get out more...
  • *****
  • Posts: 2919
Re: Horizontal extender for stand?
« Reply #5 on: August 10, 2019, 02:03:09 PM »
You didn't mention how far out horizontally you need to go.

If you are looking for a traditional boom setup, I use this combo which is very solid.  You absolutely need a heavy counterweight on the bottom of you stand if you use this.

https://www.bhphotovideo.com/c/product/302172-REG/Manfrotto_124_124_Clamp_for_3085.html
+
https://www.bhphotovideo.com/c/product/546540-REG/Manfrotto_099B_3_Section_Extension_Pole_35.html



If you only need to go a short distance out, then I would say:

https://www.bhphotovideo.com/c/product/546371-REG/Manfrotto_035_035_Super_Clamp_without.html
+
https://www.bhphotovideo.com/c/product/546373-REG/Manfrotto_042_042_Extension_Arm_with.html
DPA 4061 | Line Audio CM3 | Naiant X-Q | AT 853
Naiant PFAs | Shure FP24
Zoom F6 | Sony PCM-M10

Team Line Audio
Quote
I am hitting my head against the walls, but the walls are giving way.    ///    If a composer could say what he had to say in words he would not bother trying to say it in music.
- Gustav Mahler

Offline MakersMarc

  • Trade Count: (15)
  • Needs to get out more...
  • *****
  • Posts: 2941
  • Gender: Male
  • 😈
Re: Horizontal extender for stand?
« Reply #6 on: August 10, 2019, 06:09:04 PM »
You didn't mention how far out horizontally you need to go.

If you are looking for a traditional boom setup, I use this combo which is very solid.  You absolutely need a heavy counterweight on the bottom of you stand if you use this.

https://www.bhphotovideo.com/c/product/302172-REG/Manfrotto_124_124_Clamp_for_3085.html
+
https://www.bhphotovideo.com/c/product/546540-REG/Manfrotto_099B_3_Section_Extension_Pole_35.html



If you only need to go a short distance out, then I would say:

https://www.bhphotovideo.com/c/product/546371-REG/Manfrotto_035_035_Super_Clamp_without.html
+
https://www.bhphotovideo.com/c/product/546373-REG/Manfrotto_042_042_Extension_Arm_with.html

Should have specified...6 inches does the trick. Thanks! I have a super clamp so just need the arm. Thank you!
« Last Edit: August 10, 2019, 06:10:57 PM by MakersMarc »
😈 Mk4v/41v>nbob actives>Baby nbox>Oade warm mod Marantz 620.

Open: 4v/41v>nbobs>Nicky mod Naiant PFA>Oade warm mod 661.

Home: the Stereo Hospital budget refurb rig: Lappie>DragonFly Red with Jitterbug>Nikko NR520 amp>B&W V202 speakers. Hi Fi Goodwill style.

Offline morst

  • Trade Count: (2)
  • Needs to get out more...
  • *****
  • Posts: 3427
  • ISO ALL archival Cracker / CVB / Monks Of Doom etc
    • Soundscape Preservation Society
Re: Horizontal extender for stand?
« Reply #7 on: August 10, 2019, 07:01:42 PM »
Should have specified...6 inches does the trick. Thanks! I have a super clamp so just need the arm. Thank you!
Wood clamp!
Teams: Neumann, Bay Area Tapers, Multitrack, Pioneertown Tapers, Mac Geeks, Cassette Masters, Poster Collectors, Alumni of teams St Louis, Upper Midwest & Milwaukee / Southern Wisco

Online vanark

  • TDS
  • Trade Count: (29)
  • Needs to get out more...
  • *****
  • Posts: 7368
  • If you ain't right, you better get right!
    • The Mudboy Grotto - North Mississippi Allstar fan site
Horizontal extender for stand?
« Reply #8 on: August 10, 2019, 08:10:28 PM »
Realize there are two versions of that short extension. One has a hex base which limits the position you can rotate it. The other is a round base that allows any position. That said, I filed off the corners on my hex version and it rotates to any position I need.
« Last Edit: August 10, 2019, 11:07:08 PM by vanark »
If you have a problem relating to the Live Music Archive (http://www.archive.org/details/etree) please send an e-mail to us admins at etree(AT)archive(DOT)org or post in the LMA thread here and we'll get on it.

Link to LMA Recordings

Link to Team Dirty South Recordings on the LMA

Mics: Microtech Gefell M21 (with Nbob actives) | Church Audio CA-11 (cards) (with CA UBB)
Pres: <empty>
Recorders: Tascam DR-60D | Tascam DR-40 | Sony PCM-M10

Offline morst

  • Trade Count: (2)
  • Needs to get out more...
  • *****
  • Posts: 3427
  • ISO ALL archival Cracker / CVB / Monks Of Doom etc
    • Soundscape Preservation Society
Re: Horizontal extender for stand?
« Reply #9 on: August 11, 2019, 02:06:07 AM »

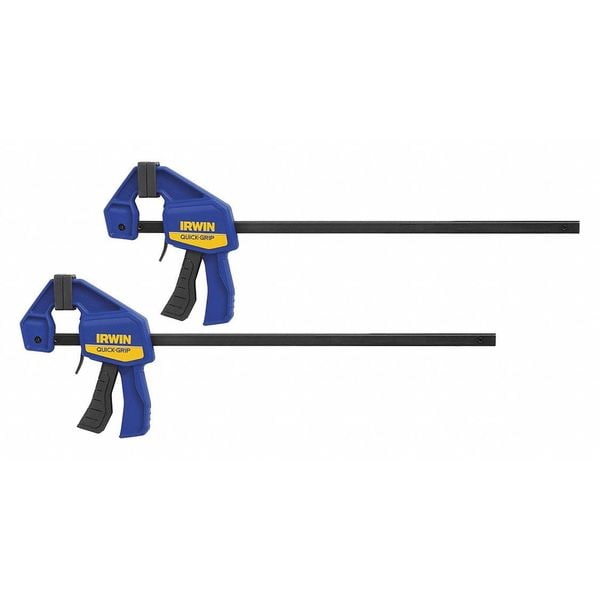

Quick Release Wood Clamp!
