New rig: Bruel & Kjaer measurement mics,
« on: June 05, 2013, 12:39:45 AM »

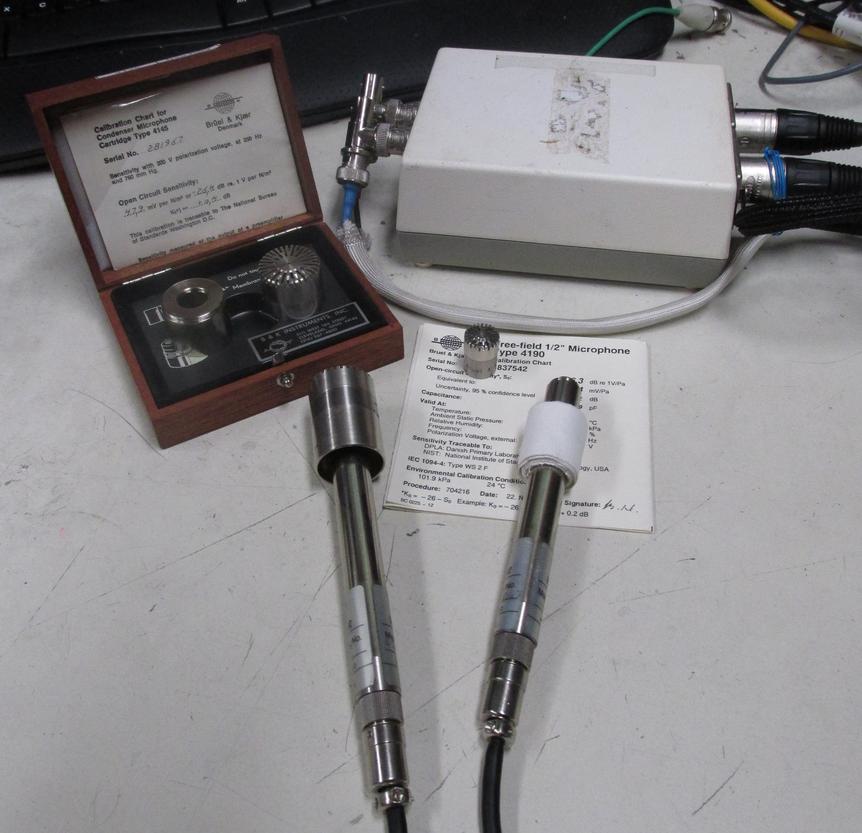

My new rig consists of:

Bruel & Kjaer 4145 (x2), B&K 4190 (1) -->
ACO Pacific 4012 preamp (x2) -->
ACO Pacific PS9200 200V dual channel PSU -->
Sony PCM-D50

4145 is a 1" measurement microphone, nickel diaphragm, 10-146dBA range.  Vintage capsules, 1970 and 1974!
4190 is a 1/2" microphone, 14.6-146 dBA, more recent (1995?).

So far I'm just recording ambient (thunderstorms, water/waves, etc).

  Richard
Logged
Please DO NOT mail me with tech questions.  I will try to answer in the forums when I get a chance.  Thanks.

Sample recordings at: http://www.soundmann.com.

Offline page

  • Trade Count: (25)
  • Needs to get out more...
  • *****
  • Posts: 8388
  • Gender: Male
  • #TeamRetired
Re: New rig: Bruel & Kjaer measurement mics,
« Reply #1 on: June 05, 2013, 10:13:53 AM »
I admit, that's sexy in a middle aged woman type way.
Logged
"This is a common practice we have on the bus; debating facts that we could easily find through printed material. It's like, how far is it today? I think it's four hours, and someone else comes in at 11 hours, and well, then we'll... just... talk about it..." - Jeb Puryear

"Nostalgia ain't what it used to be." - Jim Williams

Offline illconditioned

  • Trade Count: (9)
  • Needs to get out more...
  • *****
  • Posts: 2998
Re: New rig: Bruel & Kjaer measurement mics,
« Reply #2 on: June 05, 2013, 10:32:03 AM »
Oh yeah, the white tape on the right mic is to hold the windscreen.  I'm using DPA windscreens right now. Need something better for outdoor recording.

  Richard

Logged
Please DO NOT mail me with tech questions.  I will try to answer in the forums when I get a chance.  Thanks.

Sample recordings at: http://www.soundmann.com.

Offline Gutbucket

  • record > listen > revise technique
  • Trade Count: (16)
  • Needs to get out more...
  • *****
  • Posts: 15772
  • Gender: Male
  • We create auditory illusions, not reproductions
Re: New rig: Bruel & Kjaer measurement mics,
« Reply #3 on: June 05, 2013, 10:44:56 AM »
Very nice.

I was wondering about the white tape.

I'd think those will be just the ticket to measure wind turbine noise.
Logged
musical volition > vibrations > voltages > numeric values > voltages > vibrations> virtual teleportation time-machine experience
Better recording made easy - >>Improved PAS table<< | Made excellent- >>click here to download the Oddball Microphone Technique illustrated PDF booklet<< (note: This is a 1st draft, now several years old and in need of revision!  Stay tuned)

Offline dallman

  • Site Supporter
  • Trade Count: (33)
  • Taperssection All-Star
  • *
  • Posts: 1819
  • Gender: Male
    • Clifford Morse
Re: New rig: Bruel & Kjaer measurement mics,
« Reply #4 on: June 05, 2013, 03:14:06 PM »
It looks great Richard! I was tempted to open the package when it was in my hands, but couldn't bring myself to do it! You may want to post some samples...
Logged
Support Live Music: Tape A Show Today!
Deck>possibly something here> Mics

Offline illconditioned

  • Trade Count: (9)
  • Needs to get out more...
  • *****
  • Posts: 2998
Re: New rig: Bruel & Kjaer measurement mics,
« Reply #5 on: June 05, 2013, 04:34:44 PM »
This is an "old school" system.  The white box looks like something Niaint or Church would build.  It takes a 9V battery and generates a 200V polarization voltage for the capsules.  The "preamps" run from +28V.  I have not opened them, but it is likely just a FET and maybe a line driver.  The connectors are: ground, +200V, +28V, and signal out (unbalanced).  Outputs are buffered by an opamp and output on a pair of BNC connectors.  This can also work with electret capsules by removing the polarization signal.

I will report back when I get some measurements.

  Richard


Logged
Please DO NOT mail me with tech questions.  I will try to answer in the forums when I get a chance.  Thanks.

Sample recordings at: http://www.soundmann.com.

Offline page

  • Trade Count: (25)
  • Needs to get out more...
  • *****
  • Posts: 8388
  • Gender: Male
  • #TeamRetired
Re: New rig: Bruel & Kjaer measurement mics,
« Reply #6 on: June 05, 2013, 04:39:26 PM »
Quote from: illconditioned on June 05, 2013, 04:34:44 PM
It takes a 9V battery and generates a 200V polarization voltage for the capsules.

damn.

I knew they were 200v caps, but that the box is powered by a 9v with some amperage is rad.
Logged
"This is a common practice we have on the bus; debating facts that we could easily find through printed material. It's like, how far is it today? I think it's four hours, and someone else comes in at 11 hours, and well, then we'll... just... talk about it..." - Jeb Puryear

"Nostalgia ain't what it used to be." - Jim Williams

Offline illconditioned

  • Trade Count: (9)
  • Needs to get out more...
  • *****
  • Posts: 2998
Re: New rig: Bruel & Kjaer measurement mics,
« Reply #7 on: June 05, 2013, 07:45:10 PM »
Quote from: page on June 05, 2013, 04:39:26 PM
Quote from: illconditioned on June 05, 2013, 04:34:44 PM
It takes a 9V battery and generates a 200V polarization voltage for the capsules.

damn.

I knew they were 200v caps, but that the box is powered by a 9v with some amperage is rad.

Polarization uses almost no current.  Ideally no current.  The box in question runs for >40hrs on a single 9V battery.  The output has a series 11MR resistor.  Inside the preamp, there is something like a 10GR resistor.

  Richard
Logged
Please DO NOT mail me with tech questions.  I will try to answer in the forums when I get a chance.  Thanks.

Sample recordings at: http://www.soundmann.com.

Offline Chilly Brioschi

  • The fool doth think he is wise, but the wise man knows himself to be a fool.
  • Trade Count: (0)
  • Needs to get out more...
  • *****
  • Posts: 15482
  • Gender: Male
  • Waiting for the next cladogenetic event, or Godot
    • Oceana North America
Re: New rig: Bruel & Kjaer measurement mics,
« Reply #8 on: June 05, 2013, 08:46:12 PM »
Quote from: page on June 05, 2013, 10:13:53 AM

I admit, that's sexy in a middle aged woman yoga instructor type way.


FTFY         ;D
