Power plug for Sony M10

[stancourtney]

I am trying to find the size for the power plug for the Sony M10. I am trying to find a replacement without buying a complete AC adapter.

Thanks,  stancourtney

[mnm207]

I've never used mine. If you're in the US, I'm happy to drop it in the mail.

[morst]

here is what came with the M10's. The tip is teeny, like 2mm


AC-ES3010K2
https://www.amazon.com/Sony-AC-Adaptor-AC-ES3010K2-147884813/dp/B004M3ZHV8

[stancourtney]

I ordered the 2.1 mm and it 5 times too big.

[morst]

I ordered the 2.1 mm and it 5 times too big.

PCM-M10 is a handheld SD card recorder.
You got the PCM-M1 DAT? the black plastic one?


https://pro.sony/en_MK/products/portable-digital-recorders/pcm-m10

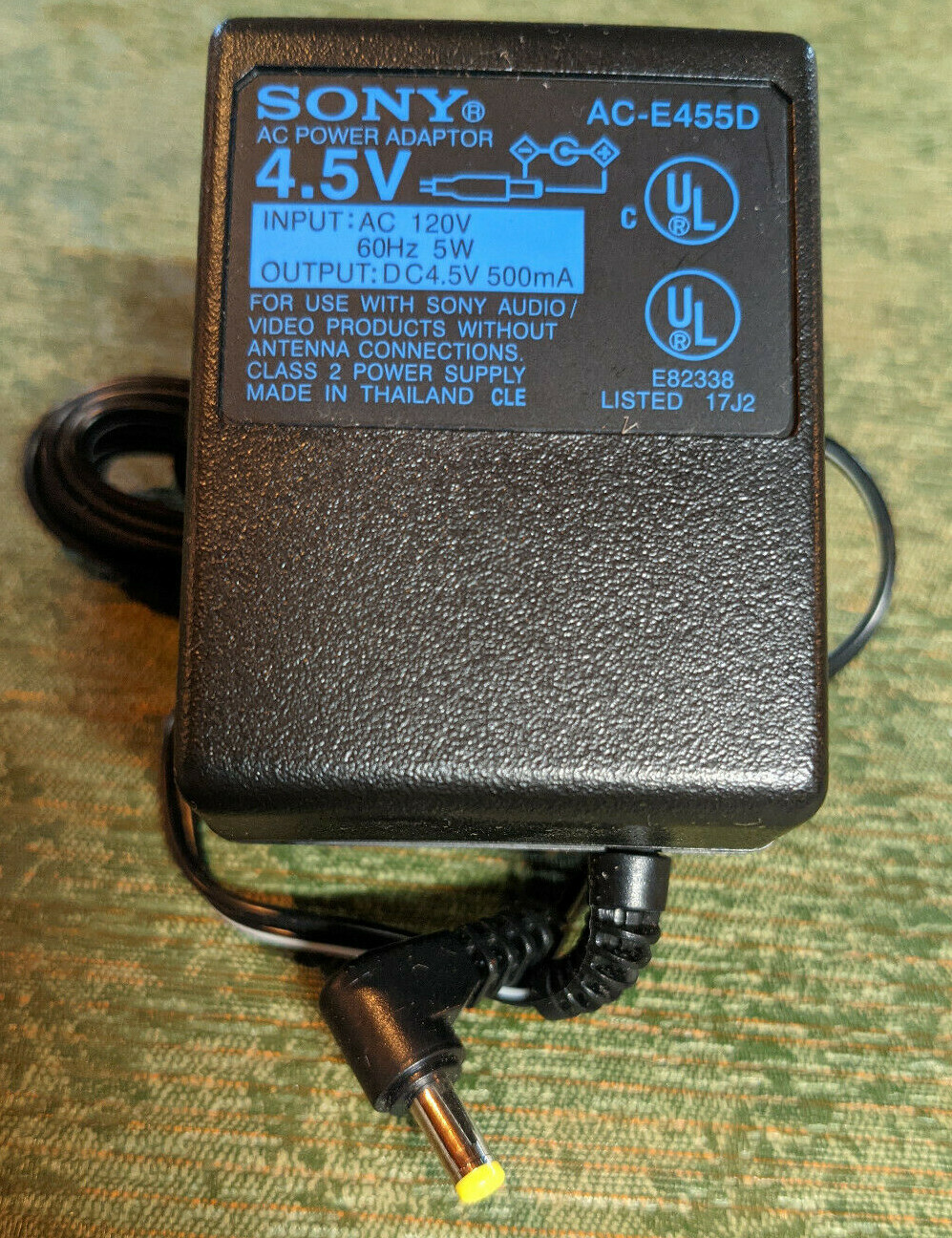

AC-E45HG is the 4.5v adapter for the old 2- AA dat machines

[kleiner Rainer]

I ordered the 2.1 mm and it 5 times too big.

You probably got a 5.5/2.1mm plug. What you want is a 2.35/0.7mm plug, also known as EIAJ-01 according to the table on this page:

https://en.wikipedia.org/wiki/Coaxial_power_connector

Greetings,

Rainer

[stancourtney]

Thank you very much.

[dallman]

It's all right here:

https://taperssection.com/index.php?topic=150794.0

[stancourtney]

Excellent
